Engineering Area Calculator

Import CAD images for quick takeoffs.

Engineering Area Calculator

Measure the dimensions of CAD drawings without the learning curve.

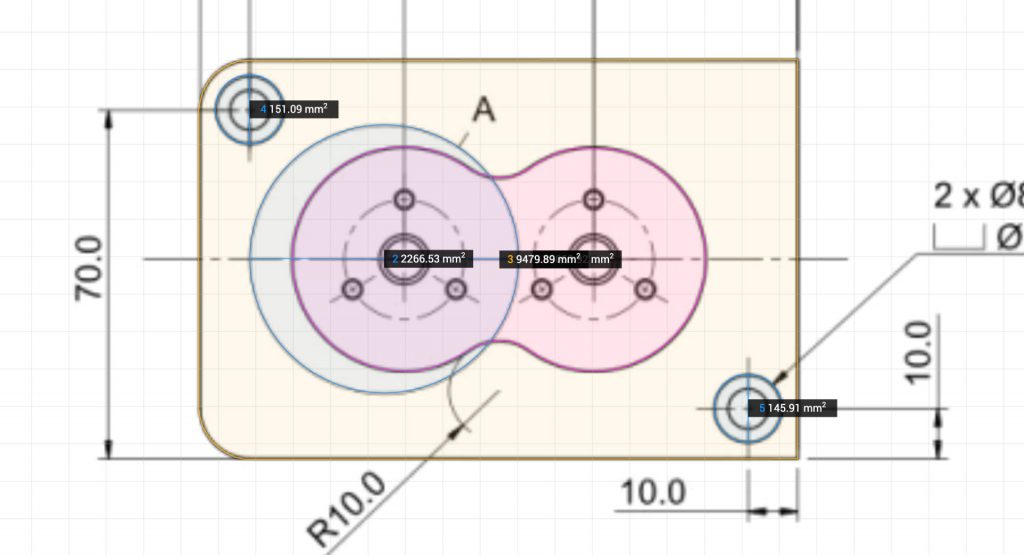

Import a CAD file (.DXF .DWG .SVG .PDF .JPG .PNG .GIF) for a quick take-off without expensive CAD software and training.

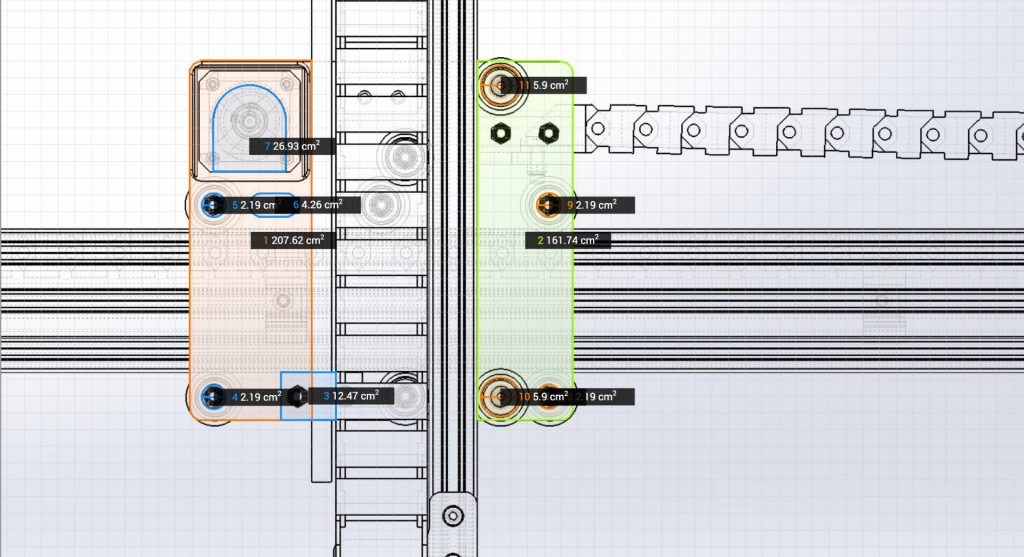

Each area drawn exists on a layer, the visibility of which can be toggled on or off for greater control.

Draw freehand shapes, constrained to angles, or full shapes like circles and squares. New vertices can be added and moved into place to help describe almost any shape.

Imperial Area Measurements with Inch Fractions

Area of imperial measurements with inch fractions

SketchAndCalc™ offers area calculations using imperial measurements with inch fractions which avoids any need to convert decimals to fractions or the other way around. No more will you have to…

How Accurate is our Area Calculator?

Accuracy of Irregular Area

So you’ve trialed SketchAndCalc™, but just how accurate is our area calculator? Area of Regular Polygon ShapesBased on the number of vertices (control points), and the angles between them, SketchAndCalc™…
